Zirconia Guide Tube Design – a Precision Fluid Solution With High Wear Resistance and High Smoothness.

The “zirconia flow guide method” refers to using zirconia ceramic materials to fabricate fluid guide tubes to achieve higher wear resistance, fluid stability, and operational reliability.

The main characteristics of this method are:

Using zirconia (ZrO₂) structural ceramics as the main material

emphasizing precision internal hole grinding technology

achieves mirror-level surface smoothness

features a low coefficient of friction on the inner wall

remains unaffected by prolonged high-flow-rate scouring.

Suitable as an upgrade solution for spray guide pipes, pump guide pipes, fluid transmission pipes, and sprayer guide components.

① Superior wear resistance, with a lifespan 5–20 times longer than metals.

Zirconia has a hardness of 1200HV10+, which is 3–4 times higher than that of stainless steel, and is not afraid of long-term high-speed fluid erosion and particle friction.

Typical application scenarios:

High-pressure spraying

Fluids containing solid particles

Continuously operating pump systems

② Mirror-smooth inner wall for more uniform flow.

The inner pore can achieve a smoothness of Ra 0.1μm, almost as smooth as glass.

Reduces fluid resistance

Ensures stable spraying or delivery

Prevents dirt and deposit buildup

Facilitates cleaning and maintenance

This is especially crucial for high-precision spraying, pharmaceutical manufacturing, and analytical instruments.

③ Naturally corrosion resistant, unaffected by acid and alkali liquids

Zirconia ceramics are completely inert to most acid and alkali solutions, cleaning agents, chemicals, and oils.

Rust-free

Pit-free

Chemical-free

Does not release metal ions (suitable for food and medical grade fluids)

It is ideal for industries such as chemical metering, spray coating, and liquid transfer.

④ High strength and not easily broken, suitable for high-pressure systems

Zirconia possesses near-metallic toughness (5–10 MPa·m½), high strength, and strong impact resistance.

Withstands high pressure fluctuations

Suitable for frequent start-stop operations

Prevents cracking and damage to the flow guide tube

Many high-pressure pumps and spraying equipment are gradually replacing alumina and metals with zirconium oxide.

⑤ High temperature resistant, insulating, and unaffected by the environment

It can withstand temperatures up to 600℃+, and the material itself is an insulator.

Unaffected by temperature fluctuations in size

Non-conductive, does not interfere with electrical signals

Suitable for semiconductor devices and electrofluid systems

Based on industry requirements, common designs include:

● Straight pipe type:

Used for general fluid transmission and guidance.

● Stepped flow guide tube.

Suitable for tapered nozzles and positioning assembly.

● Internal/External thread type:

Can be directly installed on the pump body or nozzle.

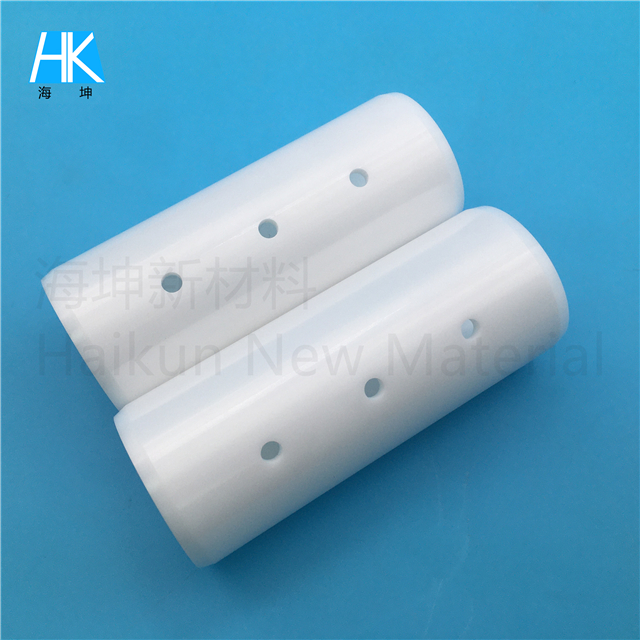

● Porous guide tube

Used for diversion, injection, or fine control.

● Custom-made irregular-shaped flow guide tube

Adaptable to special equipment structures.

All structures can be customized according to your drawings.

If you want your equipment to be more stable, more durable, and have lower maintenance costs,

The zirconia flow tube design will be one of the most worthwhile core components to upgrade.

As a manufacturer of precision ceramic structural components, Haikun can also provide material selection and structural optimization solutions according to your needs.
