What are the classifications of zirconia structural ceramics?

Pure zirconium oxide is structurally unstable at room temperature and requires the addition of stabilizers (such as yttrium oxide and magnesium oxide) to achieve stable properties. Therefore, the most common classification method is based on the type of stabilizer used.

1. Yttrium-stabilized zirconium oxide (Y-TZP) – the most widely used

Features:

High strength (bending strength ≥800 MPa, compressive strength ≥2000 MPa)
High toughness (9 MPa·m¹/²)
Good surface density
Excellent polishing performance

👉 Optimal overall performance, currently the mainstream zirconia material

Typical applications:

Ceramic cutting tools

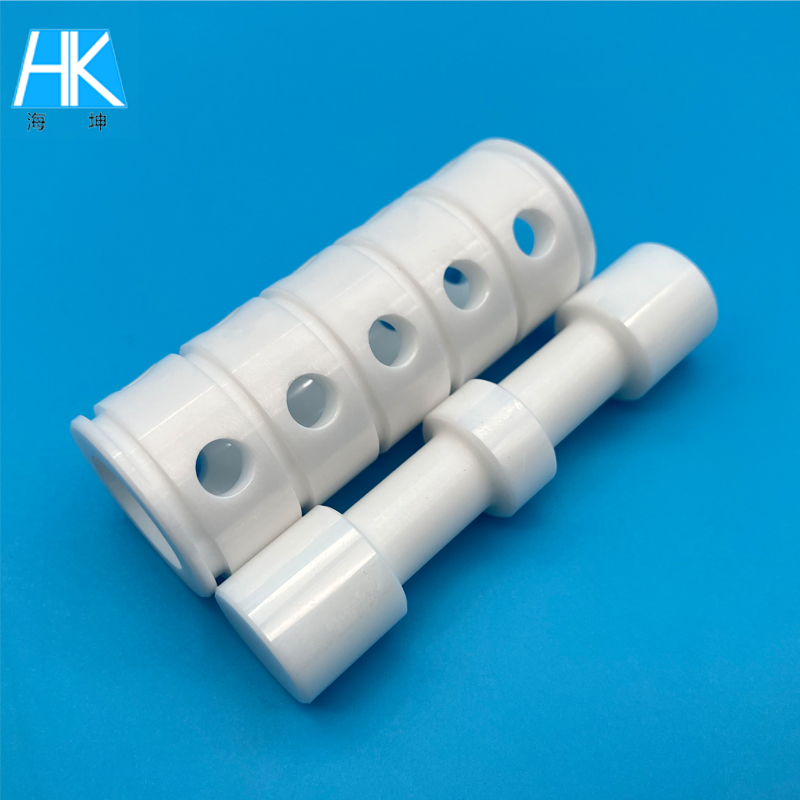

Sleeves, bearings
Plungers, valve cores

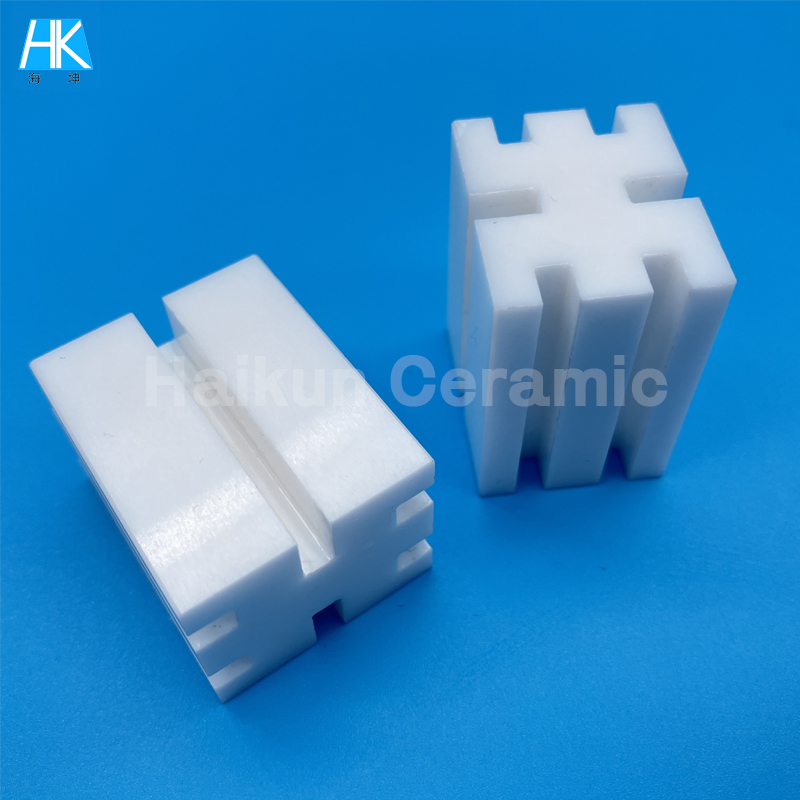

Precision structural components

2. Magnesium-stabilized zirconium oxide (Mg-PSZ) – Better high-temperature performance

Features:

High temperature stability
Excellent thermal shock resistance
High toughness
👉 More suitable for high-temperature operating conditions

Typical applications:

High-temperature mechanical parts
Thermal equipment
Metallurgical industry components

3. Calcium-stabilized zirconium oxide (Ca-PSZ)

Features:

Low cost
Stable performance
But its overall performance is inferior to Y-TZP, therefore it is used relatively less.

Zirconia has different crystal structures at different temperatures, which is the fundamental reason for its performance differences.

1. Monoclinic zirconium oxide

1. Room temperature stable structure

Low strength
Limited engineering applications

2. Tetragonal zirconia

High strength
Can undergo phase transformation toughening

The core structure of high-performance structural ceramics

👉 Y-TZP mainly uses this structure

3. Cubic zirconium oxide

Good thermal stability

Excellent electrical conductivity (oxygen ion conductivity)

Commonly used in functional ceramics (such as oxygen sensors)

From a practical application perspective, zirconia structural ceramics can also be classified into the following categories:

1. Wear-resistant structural ceramics

Features:

High hardness
Wear resistance
Long service life

Applications:

Sleeves, guides, nozzles, plungers

2. Precision Mechanical Ceramics

Features:

High dimensional accuracy

High surface finish

Applications:

Precision instrument components

Automation equipment parts

3. Medical-grade Zirconia Ceramics

Features:

Excellent biocompatibility

Non-toxic and pollution-free

Applications:

Dental materials
Artificial joints

4. High-Temperature Structural Ceramics

Features:

Resistant to thermal shock

High-temperature stability

Applications:

Thermal equipment
High-temperature components

In practical selection, the following principles can be used for quick judgment:

General structural components → Y-TZP (preferred)
High-temperature environments → Mg-PSZ
Cost-sensitive → Ca-PSZ
Functional ceramics (conductive/sensing) → Cubic zirconia

👉 If unsure, Y-TZP is usually sufficient to meet most industrial needs.

Zirconia structural ceramics can be understood from three dimensions:

by stabilizer → by crystal structure → by application field

In practical engineering:

👉 Y-TZP is the most mainstream, mature, and recommended choice.
