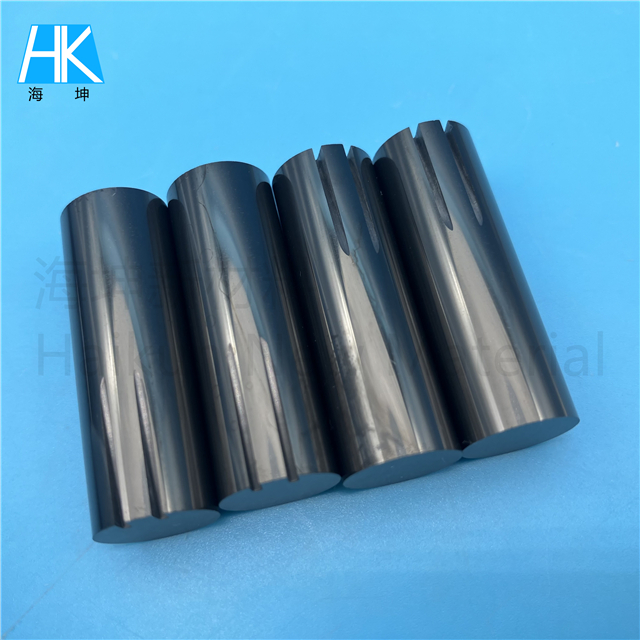

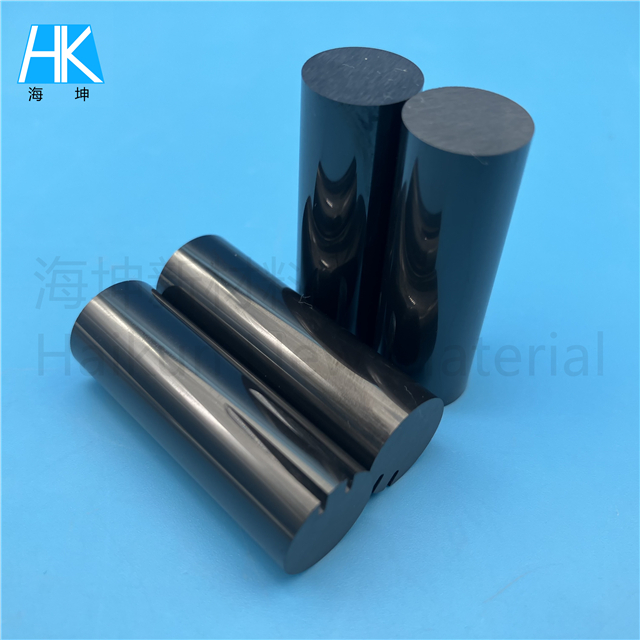

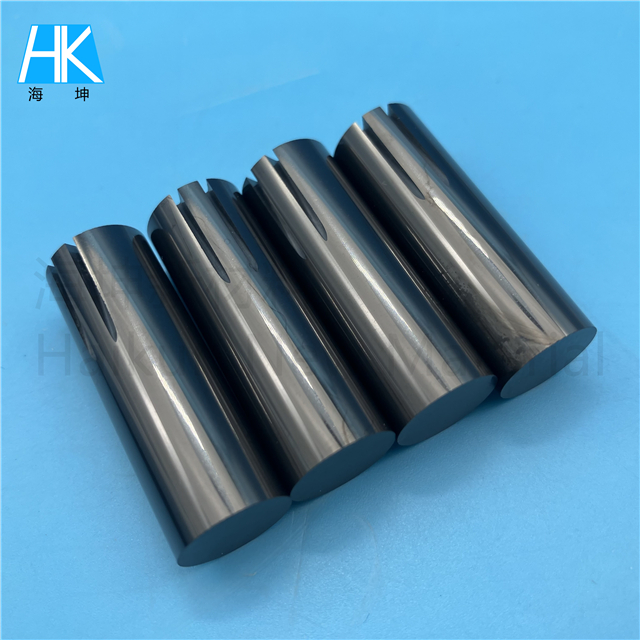

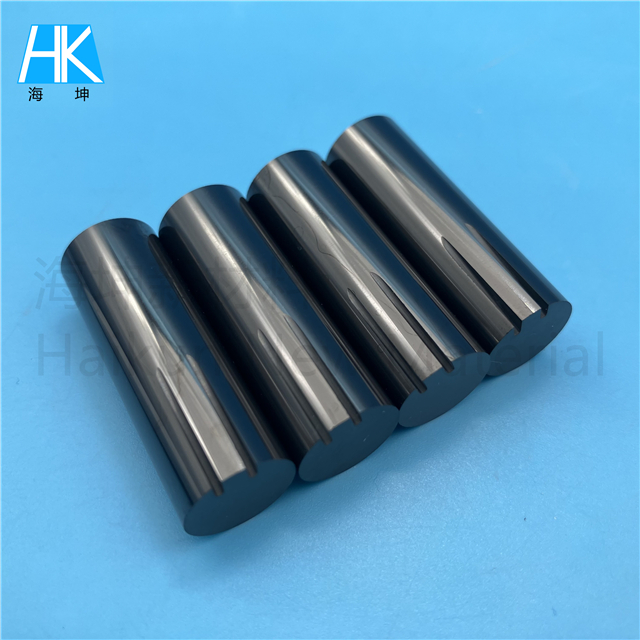

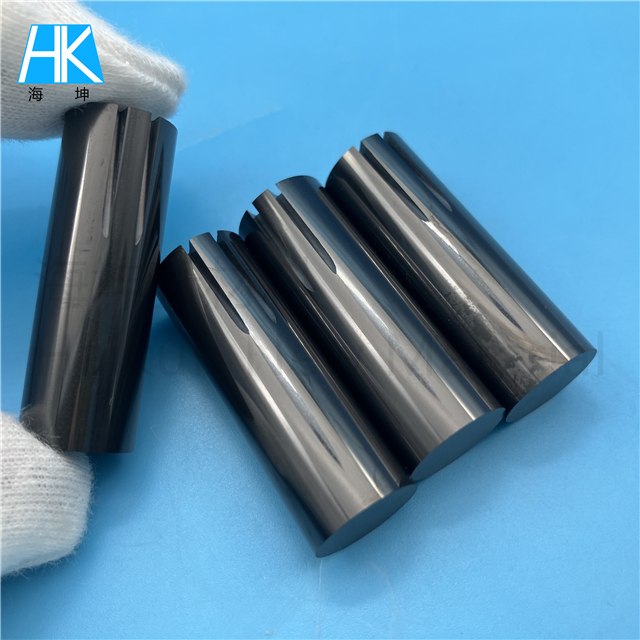

Silicon Nitride Ceramic Rod

Detailed explanation of the design features of silicon nitride ceramic rods (Si₃N₄ Rods)
The design of silicon nitride ceramic rods combines material properties and engineering requirements, making them perform well in harsh environments such as high temperature, high load, wear resistance, and insulation. The following are its core design features:

1. Structural optimization design
(1) High-strength lightweight structure
Thin-wall hollow design: Under the premise of ensuring strength, optimize the wall thickness through finite element analysis (FEA) to reduce weight (such as aviation bearing sleeves).

Bionic enhanced structure: imitate the layered distribution of bamboo fiber to improve bending strength (fracture toughness increased by 20%).

(2) Thermal shock resistance design
Gradient pore design: The porosity inside the rod increases from the center to the outside to relieve thermal stress (suitable for fast heating scenarios, such as laser equipment).

End buffer structure: The ends of the rod are rounded or chamfered to avoid edge cracking caused by thermal expansion.

2. Surface treatment technology
(1) Ultra-precision machining
Nano-level polishing: surface roughness Ra≤0.05μm (used for semiconductor wafer support rods to avoid contamination).

Laser microtexturing: surface processing of micron-level pits (such as bearing rods) to store lubricants and reduce the friction coefficient by 30%.

(2) Functional coating
DLC coating: surface coating with diamond-like carbon film, wear resistance increased by 5 times (suitable for high-load guide rollers).

Anti-oxidation coating: SiO₂ protective layer formed in high temperature environment (such as rods for heat treatment furnaces).

1. Industrial manufacturing and machinery
(1) Precision bearings and bushings
Applications: high-speed machine tool spindles, chemical pump bearings, vacuum equipment shafts
Advantages:
Temperature resistance of 1200°C (metal bearings are only 300°C)
Self-lubricating, no grease required (suitable for dust-free environments)
Lifespan is 3-5 times longer than steel bearings

Case: German Schaeffler ceramic hybrid bearings

(2) Wear-resistant guide rollers and guide rods
Applications: glass production line annealing furnaces, metal heat treatment guide rails

Advantages:
Resistant to high-temperature oxidation, no deformation
Surface hardness of 15GPa, wear resistance 10 times higher than metal

Case: Japanese FANUC robot high-temperature guide rod

2. Semiconductors and electronics
(1) Wafer transfer and support rods
Applications: semiconductor etching machines, CVD equipment wafer fixtures
Advantages:
Zero metal contamination (purity>99.9%)
Anti-static design (surface resistance 10⁶-10⁹Ω)

Case: TSMC 7nm production line wafer robot

(2) High-power electronic heat sink
Applications: IGBT module heat dissipation substrate, 5G base station RF devices

Advantages:
Thermal conductivity 30W/(m·K) (50% higher than alumina)
Insulation withstand voltage (>10kV/mm)
